Figure 3 | Multi axes crosstalk error analysis and correction method. (IMAGE)
Caption

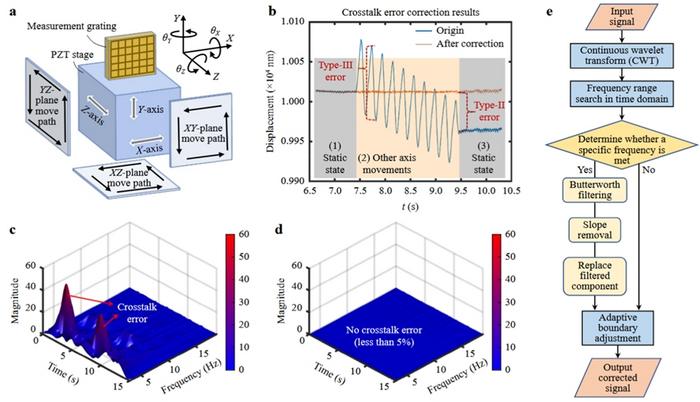

Figure 3 | Multi axes crosstalk error analysis and correction method. (a) Motion path of the grating in different planes. (b) In the XY plane, X-axis motion induces crosstalk error in the Y axis. (c) Wavelet transform diagram showing crosstalk error. (d) Wavelet transform diagram of crosstalk error after algorithm correction. (e) Flowchart of the correction algorithm.
