Laser technology enables magnetic liquid metal to form a multifunctional skin on 3D-printed soft robots

Soft robots and wearable monitors promise machines capable of gently navigating human organs or inspecting delicate engineering infrastructure without causing mechanical damage. But bridging pliable synthetic bodies with functional electronics has long foundered on a physical mismatch: while polymers bend and stretch, the metallic pathways that carry current and respond to magnetic fields fracture under repeated strain.

In the International Journal of Extreme Manufacturing, Prof. Tao Zhou at Sichuan University and his co-workers report a route that combines stereolithography (SLA) 3D printing with laser-induced selective metallization. By exploiting the selective adhesion of a magnetic liquid-metal slurry made from Galinstan and iron particles to the copper patterns produced by laser-induced selective metallization, Prof. Zhou's team fabricated flexible devices that crawl on flat surfaces and slopes, move across water, shield electromagnetic interference, and restore cut conductive traces with magnetic assistance.

The root of this manufacturing lies in creating high-resolution, localized functional patterns on complex 3D-printed polymer surfaces without sacrificing their deformability. In the team's approach, nano-ZnO is incorporated into a photosensitive resin before printing, and a laser selectively activates designated regions on the printed surface. These laser-defined sites subsequently guide electroless copper deposition, creating precise metallic patterns that serve as an interfacial layer for the attachment of magnetic liquid metal.

The advance tackles a chemical, thermal, and mechanical dilemma that has frustrated roboticists for decades. Dispersing magnetic microparticles throughout a silicone precursor yields uniformly magnetized devices that are incapable of localized, intricate motions. Depositing traditional rigid metals, such as electroplated nickel, provides a sharp magnetic response but cracks and peels away as soon as the flexible substrate stretches.

Gallium-based liquid metals, which remain fluid at room temperature, theoretically offer limitless fatigue resistance and high electrical conductivity. However, their immense surface tension causes them to bead into uncooperative spheres that roll off non-metallic polymers, making it nearly impossible to draw precise circuits onto intricate, curved three-dimensional surfaces.

The researchers bypassed this mismatch with a three-step manufacturing recipe. They began by loading an off-the-shelf elastic 3D printing resin with 4 wt% zinc oxide nanoparticles. These particles sit dormant inside the cured plastic structure.

Next, an ultraviolet laser traces the desired pattern across the printed object's contours. The laser acts like a focused thermal scalpel, knocking oxygen atoms loose from the zinc oxide crystal lattice and leaving behind charged atomic vacancies.

When the object is dipped into a chemical bath, these defective sites act as catalytic footholds that selectively grab dissolved copper ions, growing a microscopic copper baseline strictly along the laser-carved track.

The final step turns this static copper path into a dynamic, magnetic conduit. The team whipped microscopic iron powder into Galinstan to create a magnetic slurry, then brushed it across the part in a mild acidic wash. The liquid alloy acts like chemical Velcro: the gallium spontaneously reacts with the laser-deposited copper to forge a durable intermetallic bond (CuGa₂). The metallic fluid locks firmly onto the copper paths while cleanly rolling off untreated resin, trapping the magnetic iron particles exclusively where the laser dictates.

This selective bonding achieves a level of precision that mechanical nozzles cannot match on curved surfaces. The liquid-metal traces measure just 58.6 μm across and remain electrically isolated with gaps as narrow as 40.23 μm. Because the conductive core remains a free-flowing liquid, severing the path with a knife does not kill the device. Gliding an ordinary handheld magnet over the damaged area tugs the suspended iron grains, which drag the fluid alloy across the cut like a self-healing suture to restore the electric current instantly.

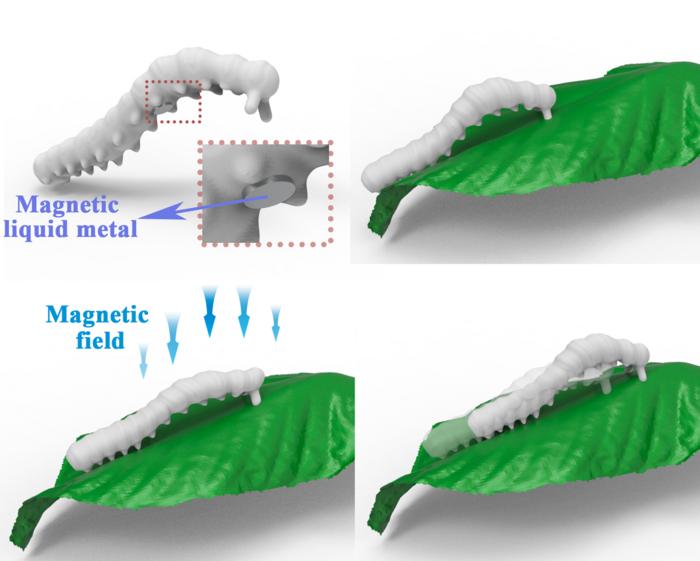

The mechanical and biological payoffs extend across diverse operating environments. By patterning the magnetic slurry only along the abdomen of a soft, 3D-printed caterpillar, the team used fluctuating magnetic fields to make the robot rhythmically buckle and extend, inching forward 3.5 cm in 15 seconds and climbing a 30° ramp.

On water, a hollow printed torpedo equipped with the material responded to near-infrared light: the laser heated the alloy, creating a localized surface-tension imbalance that pushed the vessel forward and steered it through tight turns without onboard motors.

When tested against hospital-acquired pathogens, the combination of zinc ions, reactive oxygen species, and liquid metal ruptured the membranes of Escherichia coli and Staphylococcus aureus, destroying over 99% of bacteria while maintaining good cytocompatibility with L929 cells. The same metallic layer also provided an average electromagnetic interference shielding effectiveness of 93.6 dB, primarily through reflection of incoming electromagnetic waves.

Crucially, the technique demonstrates that specialized cleanrooms, high-temperature sintering, and single-use stencils are not required to build complex 3D bioelectronics. Prototypers can design a soft mechanism on a desktop computer, print it overnight on standard photopolymer hardware, and laser-write high-resolution circuits onto freeform geometries in minutes. For the public, this could pave the way for customizable wearable sensors and multifunctional soft robotic devices tailored to individual needs.

Translating the method toward production will depend on replacing laboratory immersion and hand-brushing steps with automated spray-coating or microfluidic baths compatible with high-speed production lines. Engineers will also need to verify that trace metal ions do not leach into human tissue during prolonged contact with acidic sweat or physiological fluids, while developing thin, breathable polymer coatings that protect the exposed liquid traces from physical friction without compromising their flexibility.
