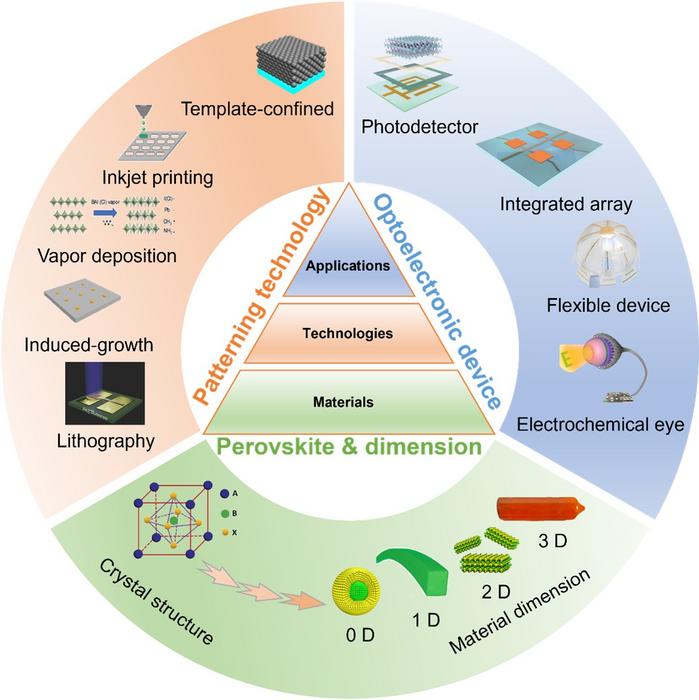

image: Figure 1. A systematic diagram from material dimensions and patterning processes to device applications. Perovskite structure. Major patterning methods, including template-confined growth, inkjet printing, vapor deposition, seed-induced growth, as well as conventional photolithography. The dimensions of perovskite materials include zero-dimensional, one-dimensional, two-dimensional and three-dimensional. Optoelectronic devices involve photodetector, integrated array, flexible wearable photodetectors, as well as biomimetic electrochemical vision systems.
Credit: Dongming Sun et al.
Photodetectors, serving as essential transducers that convert optical signals into electrical signals, are indispensable components in imaging, communications, and biomimetic applications. Although silicon-based materials are extensively utilized, they face inherent limitations such as low light absorption efficiency and insufficient mechanical flexibility. Perovskite materials have emerged as next-generation "star" materials due to their exceptional optoelectronic properties, including high carrier mobility and tunable bandgaps. However, the precise fabrication (patterning) of perovskite materials into desired micro/nanostructures represents a critical step and a significant technological challenge in realizing high-performance, integrated optoelectronic devices.
A research team led by Professor Dongming Sun at the Institute of Metal Research, Chinese Academy of Sciences (IMR, CAS), has comprehensively reviewed recent advances in perovskite thin-film patterning techniques for photodetector applications. Their work systematically compares five major patterning methodologies—including template-confined growth, inkjet printing, and others—detailing their underlying principles, advantages, and limitations. Significantly, they introduce the concept of "dimensional engineering," establishing a correlation between material performance and structural dimensionality across different scales.
The review elucidates the pivotal role of patterning technologies in enhancing key device performance metrics, such as sensitivity and response speed. It further highlights the breakthrough application potential of patterned perovskite devices in cutting-edge fields, notably flexible wearable health monitoring (e.g., pulse detection) and bio-inspired electrochemical eyes. This comprehensive analysis provides crucial guidance for the design and integration of perovskite-based optoelectronic devices.
Patterning Imperative
Precise control of perovskite morphology via microstructuring enhances light absorption, charge separation, and device stability. Patterning mitigates limitations of conventional films, such as inhomogeneous grain boundaries and environmental degradation.
Patterning Techniques
- Template-guided growth uses physical or chemical templates to confine perovskite crystallization, enabling ordered arrays.
- Inkjet printing allows direct deposition of perovskite inks for customizable patterns but faces challenges like "coffee ring" defects.
- Vapor deposition achieves high-purity films through controlled gas-phase reactions, ideal for large-area uniformity.
- Seed-induced growth leverages pre-placed nucleation sites for epitaxial growth of single-crystal films.
- Photolithography offers sub-micron resolution but risks damaging perovskites during processing.
Device Integration
Patterned perovskites underpin photodetectors in diverse configurations:
- 0D quantum dots excel in broad-spectrum detection.
- 1D nanowires enable polarized-light sensing and flexible electronics.
- 2D layered films provide stability and tunable bandgaps.
- 3D single crystals maximize charge transport for high-sensitivity imaging.
Emerging Applications
- Flexible wearables leverage patterned films for conformal health sensors (e.g., pulse monitors) and UV detectors.
- Biomimetic vision systems use perovskite arrays to replicate retinal functions, enabling low-light imaging and full-color perception in artificial eyes.
Challenges Ahead
Scalability, environmental stability, and lead-free alternatives remain hurdles. Future work must integrate patterning with encapsulation technologies and explore sustainable materials to enable commercial adoption.
Article Title
Recent progress in the patterning of perovskite films for photodetector applications
