Exceptional points revolutionize surface acoustic wave sensors for precision gas monitoring

In a landmark advance in microsensor technology, researchers have unveiled an ultra-sensitive gas detection method using surface acoustic wave (SAW) sensors enhanced by the physics of exceptional points (EPs). These EPs, phenomena from non-Hermitian systems where eigenvalues and eigenvectors converge, allow for amplified signal response. By incorporating this concept into SAW devices, the team developed a hydrogen sulfide (H₂S) sensor with extraordinary sensitivity, rapid response, and resilience against environmental fluctuations. Published in Microsystems & Nanoengineering, the study offers a powerful new platform for real-time gas monitoring in environmental, industrial, and medical applications—marking a critical step toward smarter, faster, and more reliable sensing technologies.

SAW sensors have long been valued for their compact design, high integration potential, and digital compatibility. Yet, enhancing their sensitivity and selectivity has proven difficult. Traditional SAW sensors detect frequency shifts caused by changes in surface layers, but this linear mechanism often limits performance. Meanwhile, the use of EPs in optics and electronics has shown promise for amplifying weak signals. However, applying EPs to acoustic wave-based systems remained largely unexplored due to engineering constraints. As the demand grows for real-time, high-precision sensing across fields like environmental safety and personalized healthcare, researchers saw an urgent need to harness EPs within SAW frameworks to break through long-standing performance ceilings.

On March 7, 2025, a research team from Huazhong University of Science and Technology and its collaborators published a study (DOI: 10.1038/s41378-024-00864-5) in Microsystems & Nanoengineering. They introduced a novel SAW sensor built around a passive parity-time (PT) symmetric architecture, enabling operation near EPs. This approach employed coupled resonators and a tin oxide (SnO₂) thin film to carefully engineer internal losses. The result: a next-generation hydrogen sulfide detector capable of sensing trace gases at 2 ppm with a lightning-fast response time of less than 10 seconds—an achievement that pushes the boundaries of current sensing technologies.

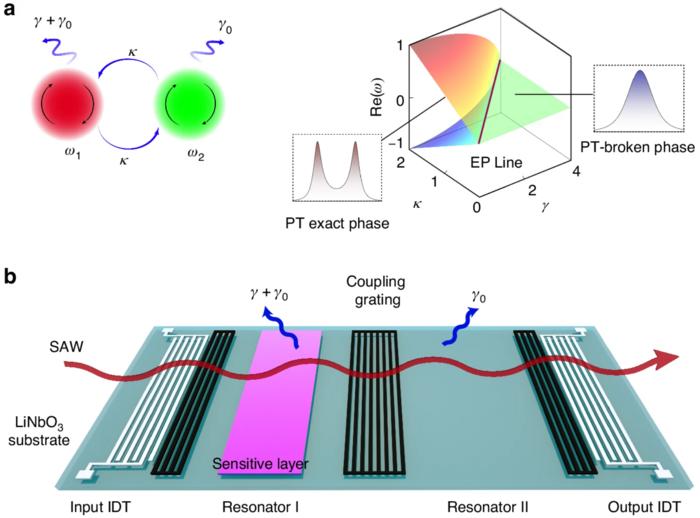

The heart of the innovation lies in using EPs to transcend the sensitivity limits of conventional SAW sensors. By designing a passive PT-symmetric system with two acoustically coupled resonators and a SnO₂-coated surface, the researchers achieved a square-root dependence of frequency shift on perturbation strength near the EP—greatly amplifying the detection signal. Unlike traditional SAW sensors, which rely on small linear shifts, this system showed rapid, nonlinear responses to minute H₂S concentrations, even at just 0.4 ppm. Impressively, it responded in under 10 seconds at higher concentrations and remained stable under temperature variations by tracking differential peak shifts rather than absolute frequencies. Selectivity was another standout: the sensor ignored common interfering gases like ammonia and nitrogen dioxide, and fully recovered after exposure. Key engineering involved compensating for SnO₂-induced frequency drift through asymmetric electrode design, ensuring real-world viability. Importantly, by operating near (but not exactly at) the EP, the system avoided unwanted quantum noise often associated with such configurations. Both COMSOL simulations and physical experiments confirmed the sensor's performance, demonstrating reproducibility on multiple substrates like quartz and potential for higher-frequency SAW platforms. The study offers not only a technical breakthrough in gas sensing but also a generalized blueprint for applying EP-enhanced methods across diverse sensor domains.

"This research bridges abstract physics and practical sensing," said Dr. Wei Luo, co-corresponding author of the study. "By leveraging exceptional points, we’ve fundamentally changed what's possible in gas detection." He emphasized the approach's scalability and its potential to influence a wide array of sensing technologies. “We see this as a platform—not just a device—which can be extended to mechanical, biological, and chemical sensors with transformative results," Luo added.

The implications of this technology stretch across industries. In environmental monitoring, it could serve as a critical early-warning system for detecting toxic leaks in industrial sites. In healthcare, it may enable real-time breath analysis for diagnosing diseases such as liver failure or metabolic disorders. Its compatibility with MEMS technology allows for low-cost, high-volume production, ideal for embedding in Internet of Things (IoT) systems. Future developments may include the exploration of higher-order exceptional points to unlock even greater sensitivity or adapting the design to detect a broader range of gases and biomarkers. By uniting advanced physics with sensor engineering, this work sets the stage for a new generation of intelligent, ultra-miniaturized detectors.

###

References

DOI

10.1038/s41378-024-00864-5

Original Source URL

https://doi.org/10.1038/s41378-024-00864-5

Funding information

This work was supported by National Key R&D Program of China under Grant 2022YFE0103300 and 2020YFA0211400.
