Experimental Device for Doping Graphene

Caption

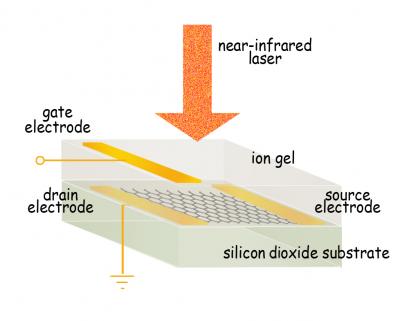

A flake of graphene was grown on copper and transferred onto an insulating substrate of silicon dioxide. The Fermi energy in the graphene was adjusted by varying the gate voltage on the overlying ion gel, which confines a strongly conducting liquid in a polymer matrix.

Credit

Lawrence Berkeley National Laboratory
