Figure 2 | XNOR, XOR, and NOR optoelectronic logic functions of the PtTe₂/WS₂ phototransistor. (IMAGE)

Light Publishing Center, Changchun Institute of Optics, Fine Mechanics And Physics, CAS

Figure 2 | XNOR, XOR, and NOR optoelectronic logic functions of the PtTe₂/WS₂ phototransistor.

Caption

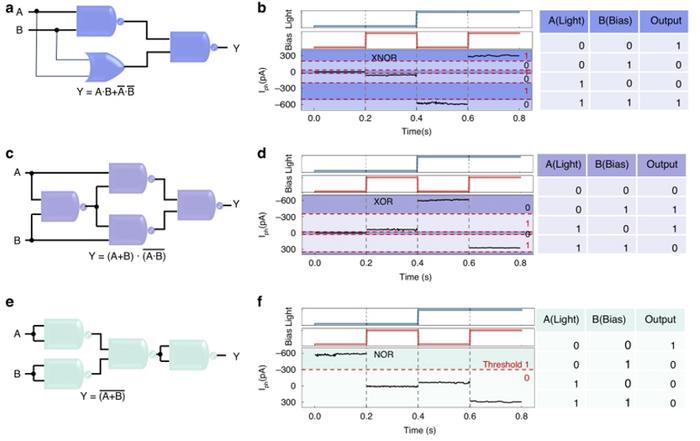

Figure 2 | XNOR, XOR, and NOR optoelectronic logic functions of the PtTe₂/WS₂ phototransistor. a, c, e, equivalent logic circuits; b, d, f, corresponding inputs, photocurrent outputs, and truth tables.

Credit

Li Gao et al.

Usage Restrictions

Credit must be given to the creator.
