Figure 3 | Microdisplay integration and operational stability.

Caption

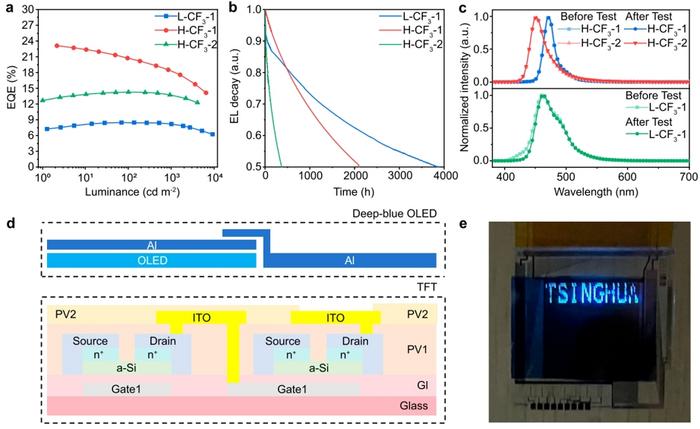

Figure 3 | Microdisplay integration and operational stability. a, EQE-Brightness characteristics of L-CF3-1, H-CF3-1/2; b, Device lifetime curves at initial luminance of 100 cd m−2 of L-CF3-1 (CF3-1 as an emitter), H-CF3-1 (CF3-1 as a sensitizer and v-DABNA as an emitter) and H-CF3-2 (CF3-2 as a sensitizer and DOB2-DABNA-A as an emitter); c, Electroluminescence spectrum (the different curves refer to L-CF3-1, H-CF3-1/2 before or after the stability measurement of several hours); d, Schematic illustration of the cross-section of the microdisplay device with top-emitting deep-blue OLEDon-TFT; e, The “Tsinghua” demonstration at this home-built deep-blue OLED-on-TFT chip operated at the switch state with a resolution of 94 PPI (pixel size 270 μm× 270 μm)
