Magnetization, specific heat, and magnetostriction measurements of {Fe8Gd8} molecules (IMAGE)
Caption

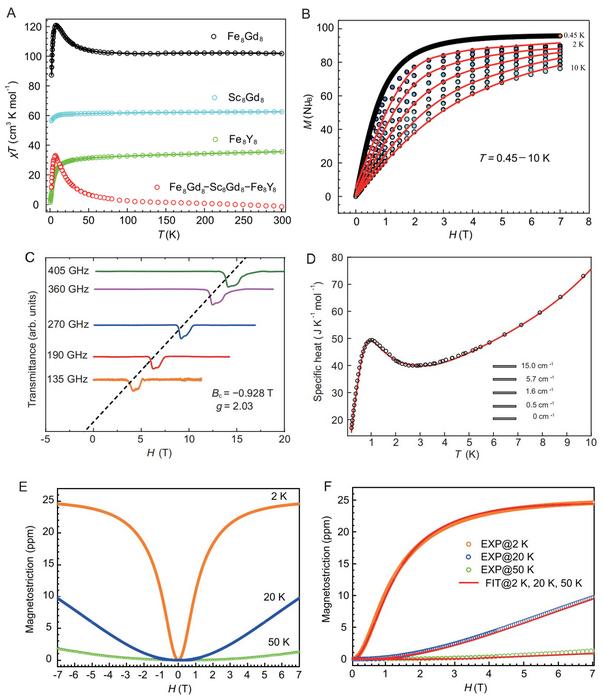

(A) Temperature-dependent product of direct current (DC) magnetic susceptibility and temperature measured under a 0.1 T field from 2 to 300 K. (B) Field dependence of magnetization plots at 0.45–10 K. (C) Selected HF-EPR spectra at 4.2 K for {Fe8 Gd8} system. (D) Temperature dependence of the specific heat measured from 0.2 to 10 K. Magnetostriction in {Fe8Gd8} single crystal: experimental data (E) vs. ECS model (F).
Credit
©Science China Press
Usage Restrictions
Use with credit.
License
Original content
