Fig. 6. f = 450 MHz, β = 0°, 30°, 90° double-layer structure scatter wave. (IMAGE)

Beijing Institute of Technology Press Co., Ltd

Fig. 6. f = 450 MHz, β = 0°, 30°, 90° double-layer structure scatter wave.

Caption

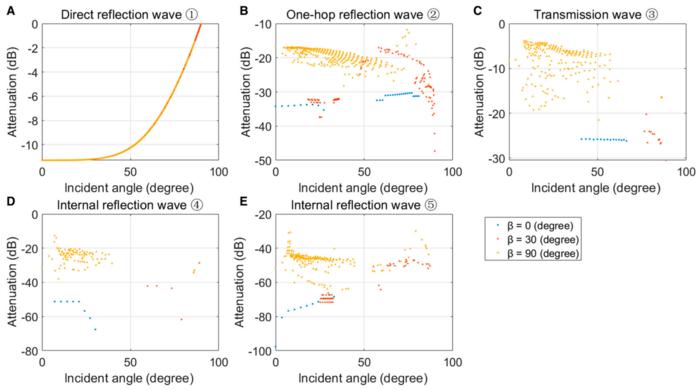

Fig. 6. f = 450 MHz, β = 0°, 30°, 90° double-layer structure scatter wave. (A) Attenuation of the direct reflected wave in the double-layer structure. (B) Attenuation of the internal reflected wave in the double-layer structure in the ② scattering path. (C) Attenuation of the transmitted wave in the double-layer structure. (D) Attenuation of the internal reflected wave in the double-layer structure in the ④ scattering path. (E) Attenuation of the internal reflected wave in the double-layer structure in the ⑤ scattering path.
