Figure 3 | Performance of the switching-selective detection of gas samples

Caption

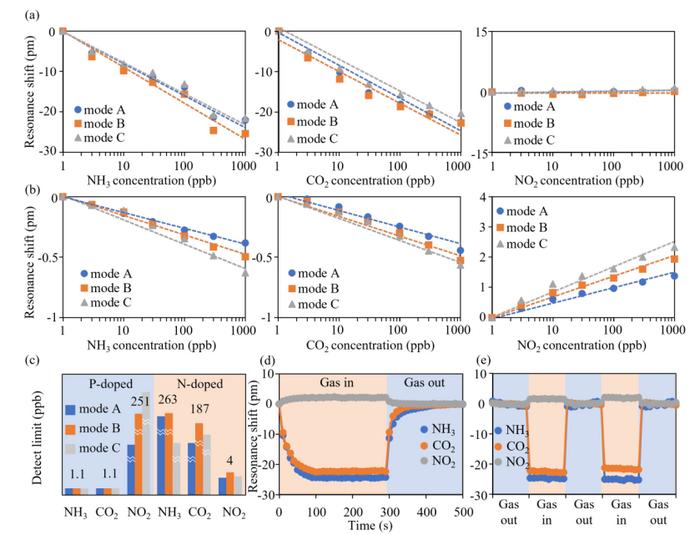

(a) Correlation between the resonance shifting and gas concentration in the P-doped graphene microrod resonator. (b) Correlation between the resonance shifting and gas concentration in the N-doped graphene microrod resonator. (c) Estimated LODs for different gases under two different types of doped graphene in three modes. (d) Measured response for the three gases, and (e) Measured stability and recovery for the three gases.
