Sticky shield: novel nanocomposite adheres to and protects electronics from electromagnetic pollution

As our world becomes increasingly saturated with wireless communications, portable gadgets, and sensor arrays, a silent form of pollution is on the rise: electromagnetic (EM) interference. This "smog" of EM waves can disrupt the function of sensitive electronics, compromise data, and even pose potential health risks. To combat this, scientists are racing to develop new materials that can effectively shield devices, and a new study published in Carbon Research presents a promising and innovative solution.

Researchers have developed a novel nanocomposite material by combining reduced graphene oxide (rGO) with a specially modified adhesive polymer, Chloroprene grafted polymethyl methacrylate (CP-g-pMMA). This new material, rGO/CP-g-pMMA, is not only cost-effective and environmentally friendly to produce but also possesses a unique combination of properties that make it an ideal candidate for protecting the next generation of electronics.

Enhanced Thermal and Electrical Performance

The study demonstrates that the new nanocomposite is significantly more resilient than its constituent parts. Thermogravimetric analysis revealed that the material is thermally stable up to 269 °C, a notable improvement over the base polymer. This increased heat resistance is crucial for applications inside electronic devices where temperatures can run high.

Furthermore, the integration of rGO creates a conductive network within the polymer matrix. This allows the material to effectively absorb EM energy and convert it into electrical conductance, thereby neutralizing its potential to cause interference. The electrical properties were tested across a wide range of frequencies, including the X-band (1–1000 MHz) and S-band (1–3 GHz), which are critical for radar, telecommunications, and wireless networking.

An Absorption-Based Shield

Unlike traditional shielding materials, which are often heavy, corrosion-prone metals that simply reflect EM waves and contribute to secondary pollution, the rGO/CP-g-pMMA composite works primarily by absorption. The leafy, layered structure of the reduced graphene oxide within the polymer matrix creates pathways that trap and dissipate incoming electromagnetic energy. This absorption-dominant mechanism is highly desirable for applications in defense and stealth technology, as well as for preventing interference between densely packed components in commercial electronics.

The Unique Adhesive Advantage

A key innovation of this research is the composite's inherent adhesive nature. The CP-g-pMMA polymer is a commercial adhesive, meaning the resulting nanocomposite can be directly applied to electronic components, serving as both a protective shield and a bonding agent. This dual functionality simplifies device manufacturing, reduces weight and complexity, and opens up new possibilities for integrating shielding directly into the structure of electronic circuits and packages.

Synthesis and Characterization

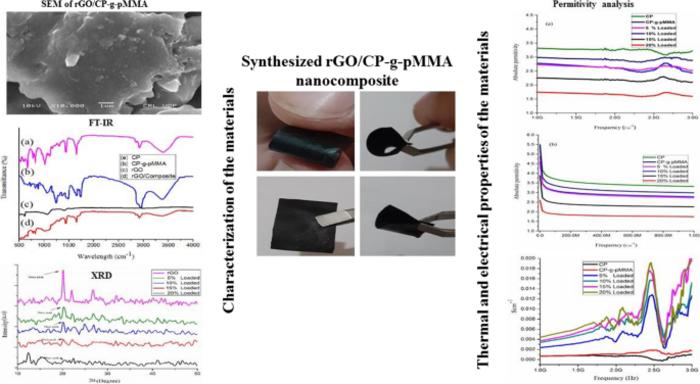

The team synthesized the material through a straightforward, multi-step process. Graphene oxide was first produced using a modified Hummer's method and then chemically reduced to form rGO. Separately, they created the grafted copolymer (CP-g-pMMA) before dispersing different concentrations of rGO into it to form thin, flexible sheets. Advanced characterization techniques, including Fourier-transform infrared spectroscopy (FTIR), X-ray diffraction (XRD), and scanning electron microscopy (SEM), were used to confirm the successful synthesis and homogenous dispersion of rGO within the polymer matrix.

Paving the Way for Safer Electronics

The successful development of this rGO/CP-g-pMMA nanocomposite represents a significant step forward in materials science for EM shielding. Its ability to absorb EM energy, coupled with its enhanced thermal stability and unique adhesive properties, makes it a highly versatile material. Potential applications range from protecting sensitive circuits from high-pulse shocks to reducing overall EM pollution in our environment, ultimately leading to more reliable, durable, and safer electronic devices.

Corresponding Author:


Adil Khan

Original Source:


https://doi.org/10.1007/s44246-022-00028-y

Contributions:


Adil Khan: Conceptualization, Investigation, Methodology, Formal analysis and data curation and Writing – original draft. Saima Sarfraz: Characterizations of the samples, Write- up suggestions, Methodology. Ata Ur Rahman: Writing – review and editing, and Validation. Sayyar Muhammad: Formal analysis and data curation, Validation and Writing – review and editing, response to the reviewer’s comments. The author(s) read and approved the final manuscript.
