Taming toxic red mud: scientists turn aluminum waste into a carbon-capturing ally

Researchers have developed effective methods for neutralizing the hazardous, highly alkaline waste from aluminum production, known as red mud, while simultaneously using it to capture and store carbon dioxide. A study led by scientists including Junhao Qin from South China Agricultural University and Chuxia Lin from Deakin University details how both rapid and slow treatment processes can convert this industrial liability into an environmental asset. The findings present new strategies for managing industrial waste in a more sustainable, circular economy

The Dual Challenge of Industrial Byproducts

The global demand for aluminum results in the generation of massive quantities of red mud, a solid waste product that is highly caustic with a pH between 11 and 13. This high alkalinity poses significant environmental risks, making its storage costly and potentially dangerous. At the same time, carbon dioxide emissions from industrial processes continue to contribute to climate change. This research explored ways to use the alkaline nature of red mud to react with and trap CO₂, addressing two separate pollution problems with a single process.

Two Paths to Neutralization

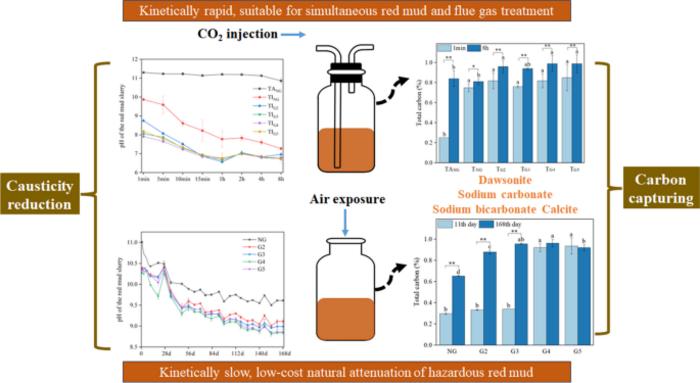

The scientific team conducted a series of laboratory experiments to test two distinct approaches. The first, an active treatment, involved injecting concentrated CO₂ directly into a red mud slurry. The second, a passive treatment, involved simply exposing the slurry to the air, allowing it to absorb CO₂ from the atmosphere naturally. Both methods were tested with and without the addition of gypsum, a common industrial byproduct from flue gas desulfurization.

The Stabilizing Effect of Gypsum

While injecting CO₂ effectively lowered the red mud's pH, the researchers observed that the pH would later rebound to hazardous levels. The addition of gypsum, a calcium-containing material, proved to be a key factor in creating a stable, long-term solution. A specific mixing ratio of gypsum to red mud of 0.04 to 0.06 was sufficient to prevent this pH rebound, permanently reducing the causticity to a safe level below pH 9. The calcium in gypsum reacted with the captured carbon to form stable minerals.

Unlocking the Chemical Secrets

The investigation showed that carbon is sequestered in the red mud through the formation of new, stable carbon-containing minerals. These include basic aluminum carbonates like dawsonite, as well as sodium bicarbonate, sodium carbonate, and calcite. When gypsum was added, the formation of calcite became a more significant pathway for locking away the carbon. This process effectively converts gaseous CO₂ into a solid, mineralized form, which the study confirmed remained stable even after a two-year aging period.

Active vs. Passive: A Tale of Two Timelines

The two methods offer distinct advantages depending on the application. Active treatment with injected CO₂ was remarkably fast, achieving significant carbon capture and neutralization within one hour. This makes it a feasible option for alumina refineries or facilities with a ready source of flue gas. In contrast, passive treatment using atmospheric CO₂ was much slower, taking over 100 days to achieve similar results. However, this slower process presents a low-cost, natural attenuation strategy for managing existing red mud storage ponds over time.

From Lab to Landscape

These findings have important implications for the creation of a circular economy. The process offers a way to manage three industrial waste streams at once: red mud from alumina refining, CO₂ from flue gas, and gypsum from power plant desulfurization. By optimizing the application of gypsum, industries can avoid excessive salinity while turning hazardous red mud into a safe material suitable for other uses, such as in construction. The authors, including Rongliang Qiu of South China Agricultural University, note that industrial-scale experiments are the next step to validate these promising laboratory results.

Corresponding Author:

Chuxia Lin

Original Source:

https://doi.org/10.1007/s44246-023-00071-3

Contributions:

The study conception and design were derived from Junhao Qin, Chuxia Lin and Anyi Niu. Material preparation and data collection were performed by Jidong Ying, Junhao Qin and Yunji Wang. The first draft of the manuscript was prepared by Chuxia Lin and Junhao Qin. Anyi Niu, Rongliang Qiu and Jun Wei Lim contributed to the revision of the manuscript. The submitted version of the manuscript was finalized by Chuxia Lin. All authors read and approved the final manuscript.
