A new recipe for biochar turns waste into a heavy metal magnet

Researchers develop a simple, one-pot method to create sulfide-modified biochar that efficiently captures toxic metals from water

Heavy metal contamination in water is a persistent environmental problem, posing risks to ecosystems and human health. While biochar, a charcoal-like substance made from biomass, is a known adsorbent for pollutants, its raw form often lacks sufficient active sites to be effective. A team of scientists at Fudan University has developed an enhanced biochar with a superior ability to immobilize a range of toxic heavy metal ions from contaminated water.

A Novel Synthesis Method

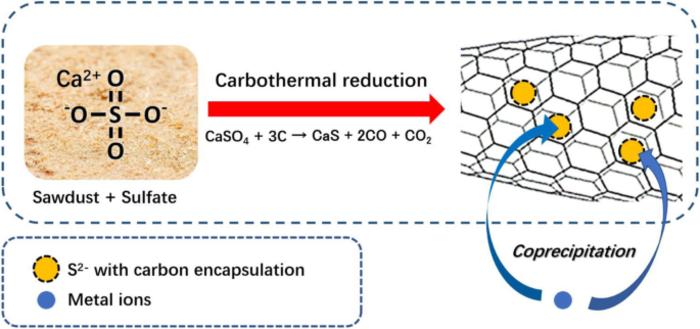

In a study published in the journal Carbon Research, the team describes a direct, one-pot process called carbothermal reduction. The researchers, including first authors Yilin Lu and Qi Wang, mixed common sawdust with calcium sulfate and heated the mixture in a nitrogen atmosphere. This process converts the sulfate into calcium sulfide, a compound highly effective at binding with heavy metals, and embeds these sulfide particles directly onto the biochar structure.

The Importance of a Carbon Shield

A significant finding of the research is that the synthesis method naturally coats the newly formed calcium sulfide particles with a protective carbon layer. This on-site encapsulation is a major advantage. Without this carbon shield, the calcium sulfide would quickly break down when exposed to water, a process known as hydrolysis, rendering it useless for water purification. The carbon layer prevents this breakdown, ensuring the sulfide remains stable and active for metal removal.

Optimizing the Process

The research team systematically examined the ideal conditions for creating the most effective biochar. They determined that the carbothermal reduction process begins at a temperature of 700 °C. Increasing the temperature further, along with adding more of the sulfate modifier, successfully produced more calcium sulfide active sites on the biochar. This optimization allows the material's properties to be tuned for maximum heavy metal capture.

Exceptional Performance in Metal Removal

The sulfide-modified biochar demonstrated an excellent capacity to remove several heavy metals, including cadmium, lead, copper, zinc, and silver. The material worked quickly, reaching adsorption equilibrium in a short time. Due to the protective carbon layer, the utilization efficiency of the calcium sulfide active sites approached 100 percent for most metals tested. This efficiency means that nearly every active part of the material contributed to the water purification process.

Uncovering the Capture Mechanism

To understand how the biochar worked so well, the scientists analyzed the material before and after use. They confirmed that the primary mechanism is coprecipitation, where the heavy metal ions in the water effectively swap places with the calcium in the sulfide particles. This reaction forms new, highly stable metal-sulfur bonds, securely locking the toxic metals into an insoluble form on the biochar surface. This robust binding prevents the metals from being released back into the environment.

Potential for Practical Water Treatment

This work presents a simple and effective method for producing a low-cost, high-performance adsorbent from biomass waste. The modified biochar’s stability and high removal capacity for multiple metal ions suggest its strong potential for real-world applications in treating industrial wastewater. The research, led by corresponding author Xiangdong Zhu of the Department of Environmental Science and Engineering at Fudan University, offers a promising avenue for developing more efficient materials for environmental remediation.

Corresponding Author:

Xiangdong Zhu

Original Source:

https://doi.org/10.1007/s44246-023-00037-5

Contributions:

All authors contributed to the study conception and design. Material preparation and data collection: Qi Wang, Fengbo Yu, Yilin Lu; Formal analysis: Yilin Lu, Qi Wang; Supervision: Xiangdong Zhu; Writing—original draft: Yilin Lu; Writing – review and editing: Xiangdong Zhu and Shicheng Zhang. All authors have read and approved the published version of manuscript.
