Carbon's versatility unlocks the potential of safer, greener zinc-ion batteries

As the world transitions towards renewable energy, the demand for safe, cost-effective, and environmentally friendly energy storage solutions has become paramount. Zinc-ion energy storage devices (ZESDs), including batteries and capacitors, have emerged as a highly promising alternative to conventional lithium-ion technologies due to the natural abundance and low toxicity of zinc. A new review published in Carbon Research provides a systematic overview of the critical role that carbon materials play in advancing these sustainable technologies. The work, authored by a team from Changsha University of Science and Technology, Sichuan University, and Xiamen University, consolidates the latest strategies for using carbon to enhance every component of ZESDs, from the cathode to the notoriously problematic zinc anode.

The Carbon Advantage in Next-Gen Batteries

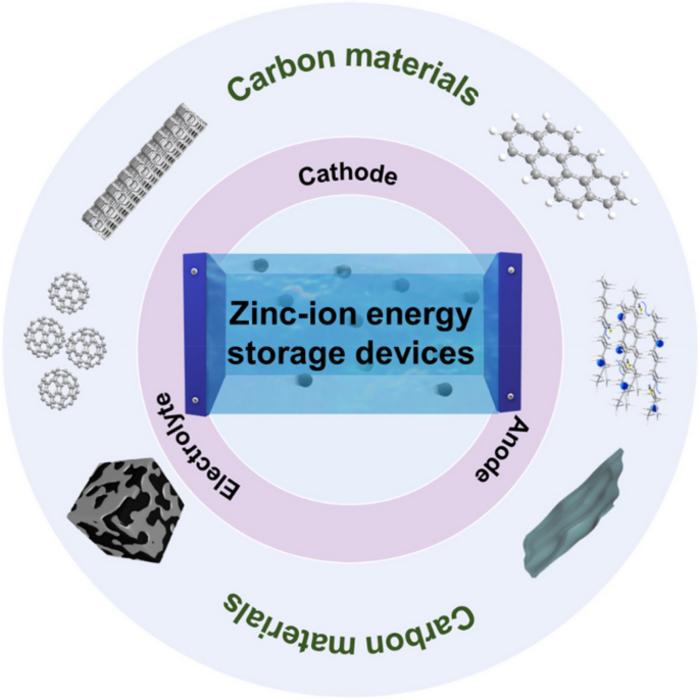

The review examines how carbon materials, with their diverse structures and tunable properties, are uniquely suited to address the primary challenges facing ZESDs. For the cathode, where charge is stored, performance issues like low capacity and poor rate capability have been significant barriers. The authors detail how engineering carbon nanostructures—from one-dimensional nanotubes to three-dimensional porous frameworks—is boosting performance. A key strategy is pseudocapacitance engineering, which involves doping the carbon with other elements like nitrogen and phosphorus. This technique introduces redox-active sites that provide additional charge storage mechanisms, substantially increasing the energy density of zinc-ion capacitors.

Stabilizing the Elusive Zinc Anode

A central challenge for zinc-based batteries is the instability of the metallic zinc anode. During charging and discharging, the anode is prone to forming sharp, dendrite-like structures that can shorten the battery’s lifespan and cause short circuits. The review explains how carbon materials provide elegant solutions to this problem. By applying carbon-based coatings or creating 3D carbon skeletons to host the zinc, researchers can effectively control the deposition process. These carbon interfaces act as a physical barrier, homogenize the interfacial electric field to prevent "tip effects," and provide abundant nucleation sites that guide zinc to deposit uniformly. This approach greatly improves the reversibility of the metallic Zn anode and extends the device's operational life.

“Carbon’s multifaceted nature is the key to unlocking the full potential of zinc-ion devices,” states corresponding author Dr. Du Yuan of Changsha University of Science and Technology. “By leveraging carbon as a protective layer for the anode, an active material for the cathode, and even as a modifier in the electrolyte, we are creating a holistic system that is not only high-performing but also inherently sustainable. This review synthesizes the progress in the field and charts a clear course for designing the next generation of robust and eco-friendly energy storage.”

Beyond the Electrodes: A Holistic Approach

The influence of carbon extends beyond the primary electrodes. The authors explore how carbon materials contribute to electrolyte regulation, enabling novel charge storage mechanisms. For instance, the chemical stability of graphite allows it to function in emerging high-voltage electrolytes where anion intercalation/de-intercalation becomes a viable charge storage process. The paper also discusses the limitations that must be addressed for widespread adoption, including the need to bridge the gap between the exceptional performance of novel carbon nanostructures and the scalable, low-cost production required for commercial viability. Sourcing carbon from renewable biomass is highlighted as a promising avenue for sustainable manufacturing.

Looking forward, the review identifies several exciting directions for the field. Future work will likely focus on the precise design of hierarchical porous carbon structures to optimize ion transport and on using advanced computational tools to understand the complex interactions at the electrode-electrolyte interface. Additionally, the inherent flexibility and conductivity of carbon materials like graphene open the door for creating multifunctional ZESDs that are flexible, stretchable, or even self-healing. By continuing to innovate with carbon, the scientific community is moving closer to realizing a future powered by safe, efficient, and truly sustainable energy storage.

Corresponding Author: Du Yuan

Original Source: https://doi.org/10.1007/s44246-024-00142-z

Contributions: All authors read and approved the final manuscript.
