AI model predicts "good" and "bad" properties of biochar before it's even made

A team of scientists at Northwest A and F University has developed a data-driven framework that can accurately predict the characteristics of an enigmatic substance within biochar known as persistent free radicals (PFRs). Biochar, a charcoal-like material produced from biomass, is widely used to improve soil fertility and remove environmental contaminants. Its effectiveness is tied to PFRs, which can have both beneficial and detrimental effects. This new predictive capability allows for the design of customized biochar, ensuring its optimal performance for specific applications.

The Double-Edged Sword of Biochar

Persistent free radicals are long-lived, chemically active substances that form during biochar production. Their presence is a double-edged sword: in pollution remediation, a high concentration of PFRs can be advantageous, as they help generate reactive oxygen species to break down organic pollutants. Conversely, when biochar is used as a soil amendment for agriculture, these same radicals can induce oxidative stress, hindering seed germination and crop growth. Therefore, being able to anticipate the PFR levels in biochar before its costly and time-consuming preparation is of paramount importance for both environmental safety and agricultural productivity.

Training a Digital Crystal Ball

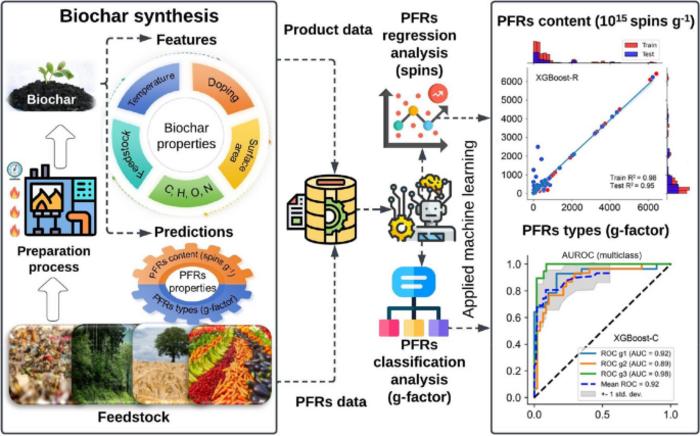

To address this challenge, researchers led by Junaid Latif, Na Chen, and Hanzhong Jia turned to machine learning. They compiled a comprehensive dataset of 253 data points from decades of peer-reviewed publications, detailing biochar's production parameters and resulting PFR properties. Using this dataset, they trained and compared five different supervised machine learning models to see which could most accurately predict both the quantity (content) and the chemical nature (type) of PFRs. The input features for the models included variables like pyrolysis temperature, feedstock source, carbon content, and whether the biochar was doped with other elements.

Decoding the Recipe for Optimized Biochar

The investigation revealed that an algorithm called extreme gradient boosting (XGBoost) demonstrated superior performance for both prediction tasks. The XGBoost model achieved an outstanding test R² value of 0.95 for forecasting PFR content and an Area Under the Receiver Operating Curve (AUROC) of 0.92 for correctly classifying PFR types. Feature analysis identified that metal/non-metal doping, pyrolysis temperature, carbon content, and specific surface area were the most influential factors determining PFR concentration. For predicting the type of PFR—whether it is a more stable carbon-centered radical or a more reactive oxygen-centered one—the model found that specific surface area and pyrolysis temperature were the dominant factors.

Dr. Na Chen, a corresponding author on the paper, stated, "Our work provides a powerful tool to navigate the complex, dual nature of PFRs. Instead of relying on expensive and often inaccessible analytical equipment after the fact, we can now use our model to guide the synthesis of biochar. Whether the goal is to maximize radical content for degrading stubborn pollutants or to minimize it for safe use in farming, this predictive approach allows for a much more efficient and targeted production process, saving valuable time and resources for scientists and engineers."

The research acknowledges that the model was built on a dataset of a specific size, and its predictive power can be enhanced as more data becomes available. The team's future work aims to incorporate additional variables, such as soil pH and the presence of heavy metals, to further refine the model's accuracy and expand its applicability to more complex environmental scenarios. This will deepen the scientific community's understanding of how biochar interacts with its surroundings.

From Complex Code to a Simple Tool

A significant outcome of this work is its immediate practical application. The researchers have developed a user-friendly, web-based graphical user interface (GUI) that makes their sophisticated XGBoost model accessible to the broader scientific community. This tool allows any researcher to input their desired biochar production parameters and receive an instant prediction of the resulting PFR content and type. This innovation effectively democratizes the ability to design high-performance biochar, accelerating research and engineering efforts focused on sustainable environmental solutions.

Corresponding Author: Na Chen

Original Source: https://doi.org/10.1007/s44246-024-00125-0

Contributions: All authors contributed to the study conception and design. Data collection, methodology and analysis were performed by Junaid Latif, Azka Saleem, Kai Li, Jianjun Qin and Huiqiang Yang. Supervision and funding were provided by Na Chen and Hanzhong Jia. The first draft of the manuscript was written by Junaid Latif and all authors commented on previous versions of the manuscript. All authors read and approved the final manuscript.
