Mesoporous carbon materials emerge as game-changer for proton exchange membrane fuel cell performance

Proton exchange membrane fuel cells (PEMFCs) represent a cornerstone technology for sustainable energy conversion, offering high power density, rapid startup, and zero-emission operation. However, widespread commercialization has been hindered by persistent challenges including high catalyst costs, insufficient mass transfer performance, and performance degradation during extended operation—particularly at high current densities. Researchers from Huazhong University of Science and Technology have published a comprehensive review demonstrating how mesoporous carbon materials, with their precisely engineered 2-50 nanometer pore structures, can overcome these limitations. These advanced materials provide exceptionally high specific surface areas, tunable pore architecture, and superior electrical conductivity, positioning them as pivotal components for next-generation fuel cells.

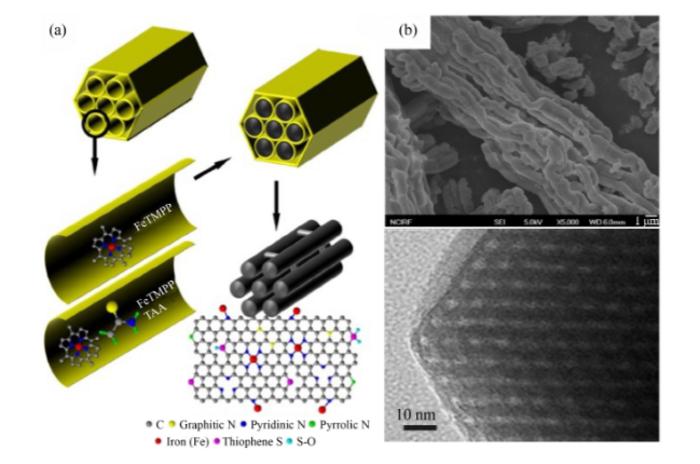

The review systematically examines three primary synthesis strategies for mesoporous carbon materials and their specific applications within PEMFC components. The research team analyzed hard template methods (using silica or metal oxide scaffolds), soft template approaches (employing amphiphilic block copolymers), and emerging template-free techniques. The study focuses on two critical PEMFC applications: catalyst support structures and gas diffusion layers (GDLs). By correlating mesoporous architecture with electrochemical performance, the review reveals how pore morphology directly influences catalyst distribution, ionomer behavior, and multi-phase transport phenomena.

Key findings demonstrate remarkable performance improvements across multiple metrics:

• Catalyst Support Optimization: Ordered mesoporous carbon (CMK-3) reduced localized oxygen transport resistance (Rlocal) to approximately 3 s/cm—an 80% improvement over conventional high surface area carbon (15.9 s/cm). Toyota's second-generation Mirai fuel cell vehicle already employs dendritic mesoporous carbon carriers to prevent direct catalyst-ionomer contact, mitigating active site poisoning.
• Enhanced Durability: Mesoporous structures exhibit domain-limiting effects that prevent Pt nanoparticle aggregation. Sub-sized Pt₃Co-mesoporous carbon catalysts retained 81.5% of mass activity after 30,000 accelerated durability cycles, dramatically outperforming commercial Pt/C catalysts (33% retention).
• Ionomer Engineering: Nitrogen-doped mesoporous carbon creates electrostatic interactions with ionomer sulfonic acid groups, achieving uniform distribution that reduces voltage loss by 45 mV at high current densities (2 A/cm²) while increasing power density by 31%.
• Gas Diffusion Layer Performance: Hierarchical mesoporous GDLs with bimodal pore distributions (3.8 nm and 6.4 nm) enabled peak power densities of 0.53 W/cm² at 1.1 A/cm², surpassing commercial Vulcan XC-72R materials.

This work establishes mesoporous carbon materials as transformative enablers for PEMFC commercialization by simultaneously addressing cost, performance, and longevity challenges. The research provides a clear roadmap for rational material design, showing how precise pore architecture can reduce platinum loading while maintaining or enhancing performance—critical for achieving U.S. Department of Energy cost targets. The review also identifies future pathways including recyclable templates, biomass-derived precursors, and machine learning integration for accelerated discovery. As fuel cell adoption accelerates in heavy-duty transportation and stationary power applications, these advances will be instrumental in realizing a hydrogen-based clean energy economy.
