Fuzhou team turns shrubs into smart skin: Amino-glycerin hydrogel powers wearables from freezers to deserts
By grafting amino silane onto glycerin-cellulose networks, researchers create a self-powered sensor that writes, warns and transmits without batteries

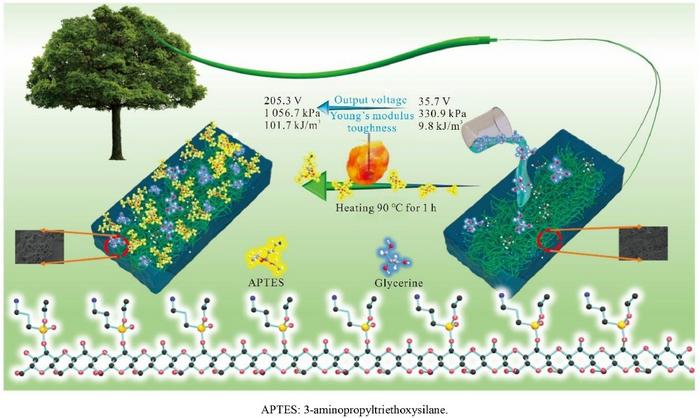

image: By grafting amino silane onto glycerin-cellulose networks, researchers create a self-powered sensor that writes, warns and transmits without batteries
Credit: College of Materials Engineering, Fujian Agriculture and Forestry University, Fuzhou, China
Imagine writing on your smartwatch with nothing more than a finger, or a dashboard patch that wakes a drowsy driver with a gentle buzz—all powered by the shirt on your back. Researchers at Fujian Agriculture and Forestry University have turned garden-variety cellulose into a stretchable “smart skin” that does exactly that. Starting with urea-alkali dissolving pulp, the team blended glycerin to stop ice crystals forming and then grafted 3-aminopropyltriethoxysilane onto the hydrogel surface. The result is a green, transparent sheet with the tensile strength of silicone and the conductivity of ionic gels (2.83 S m⁻¹). When laminated against PTFE, it becomes a triboelectric nanogenerator that yields 205 V open-circuit voltage and 732 mW m⁻² peak power—five times higher than untreated cellulose. Glycerin locks in moisture, so the patch works at –24 °C ski slopes and 60 °C desert roads alike; after 24 000 bends at 60 °C it still delivers 97 % of its original output. In demonstrations, the hydrogel lit 48 LEDs, powered a capacitor that ran a Bluetooth beacon, and recognised handwriting by mapping voltage spikes to pen strokes. A driver-fatigue patch converts eyelid motion into radio pings, while paired finger-mounted patches transmit “world” in Morse code. The team says the recipe is simple, scalable and uses only farm waste and food-grade additives, paving the way for truly self-powered, biodegradable wearables.
