Effect of BC@β-CD on carbon metabolism in CWs (IMAGE)
Caption

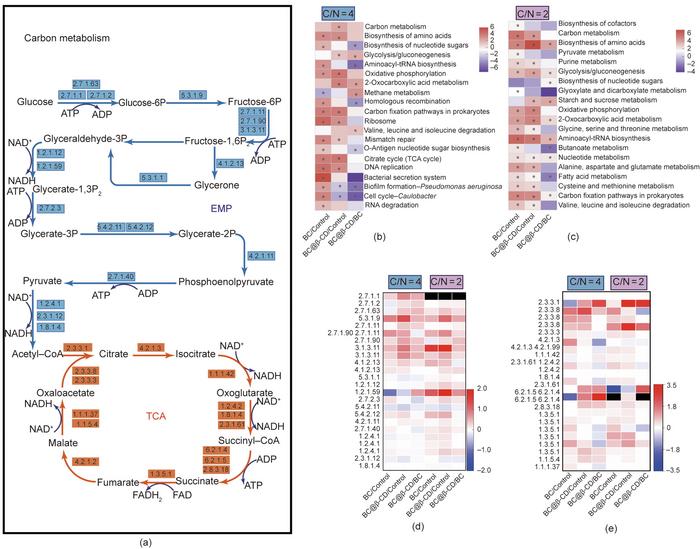

(a) Illustration of glucose metabolism. FADH2: flavin adenine dinucleotide (reduced form), FAD: flavin adenine dinucleotide, ATP: adenosine triphosphate, ADP: adenosine diphosphate; (b, c) KEGG pathway enrichment analysis of CWs during Stages (b) Ⅲ and (c) Ⅳ; (d, e) heatmap comparing abundance of genes
related to carbon metabolism in CWs; (d, e) genes involved in (d) EMP pathway and (e) TCA cycle. The black blocks represent the gene that was not detected in a certain treatment group.
